項目簡介

這是一個簡單、靈活、交互式、強大的跨平臺圖表庫，支持Maui、Uno Platform、Blazor-wasm、WPF、WinForms、Xamarin、Avalonia、WinUI、UWP。

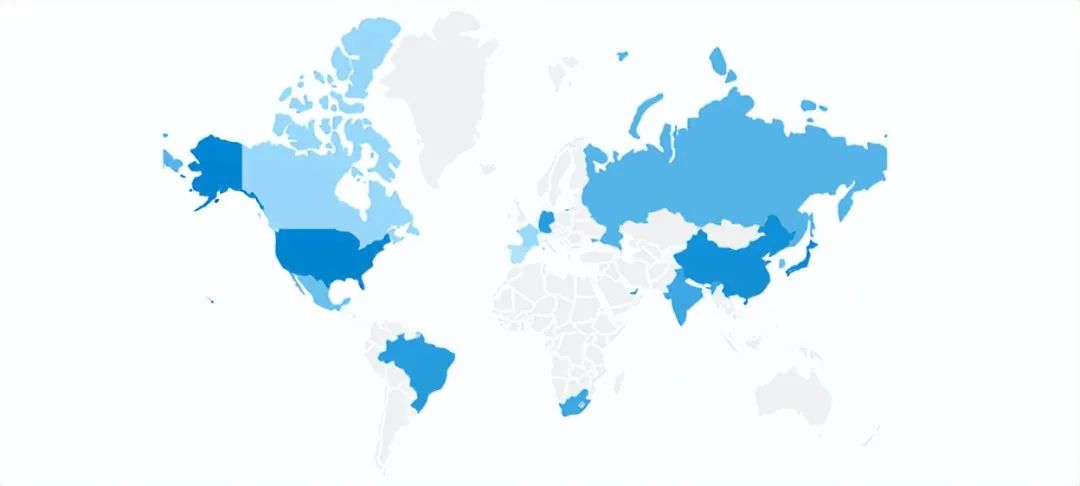

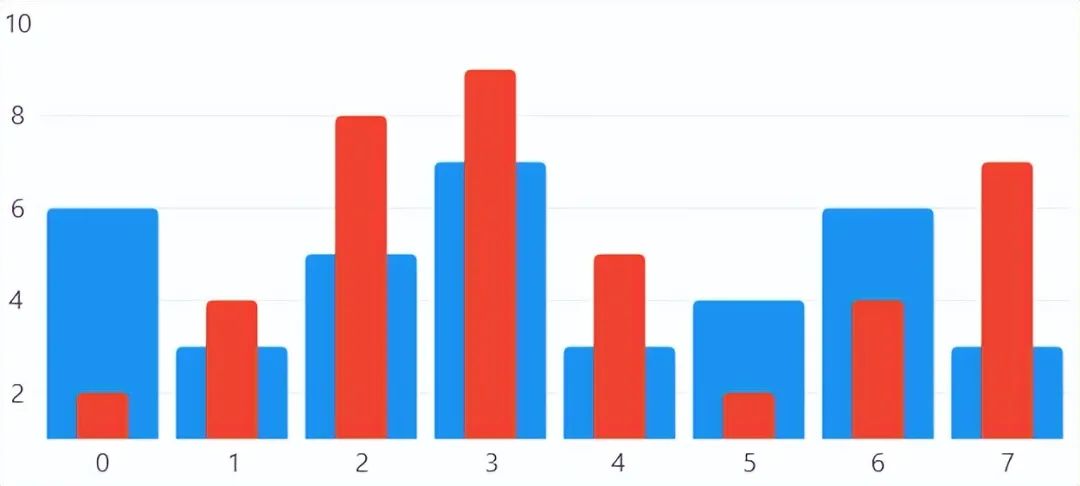

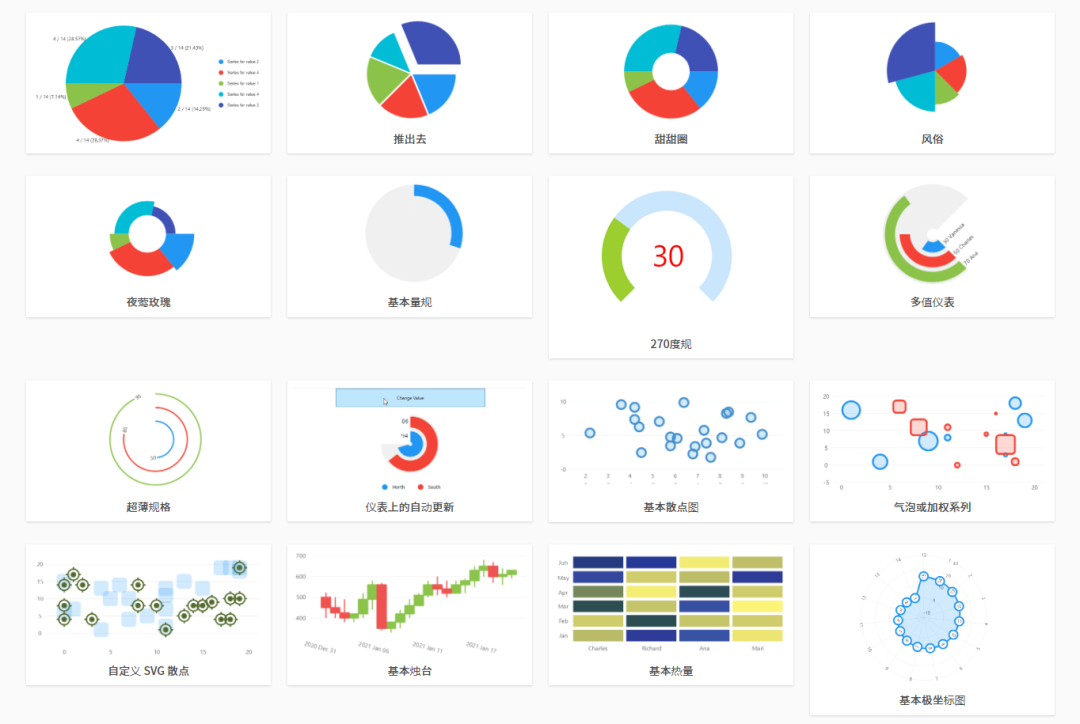

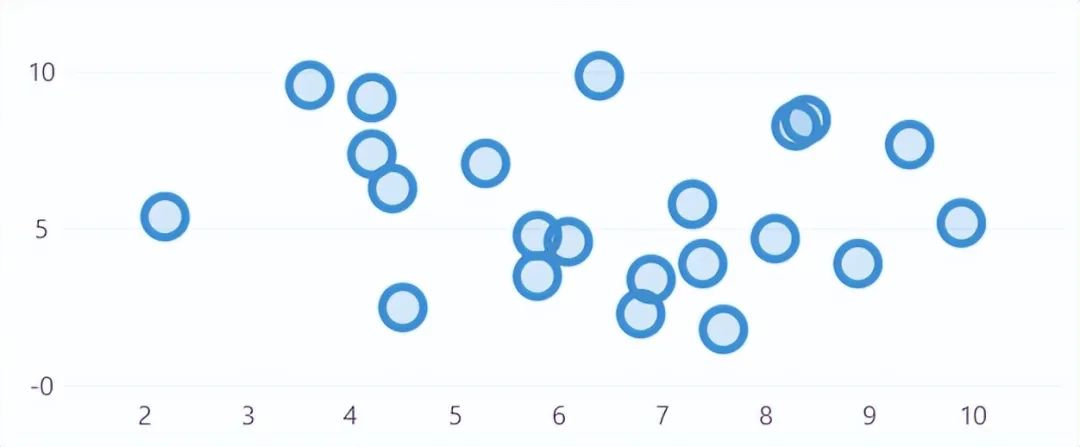

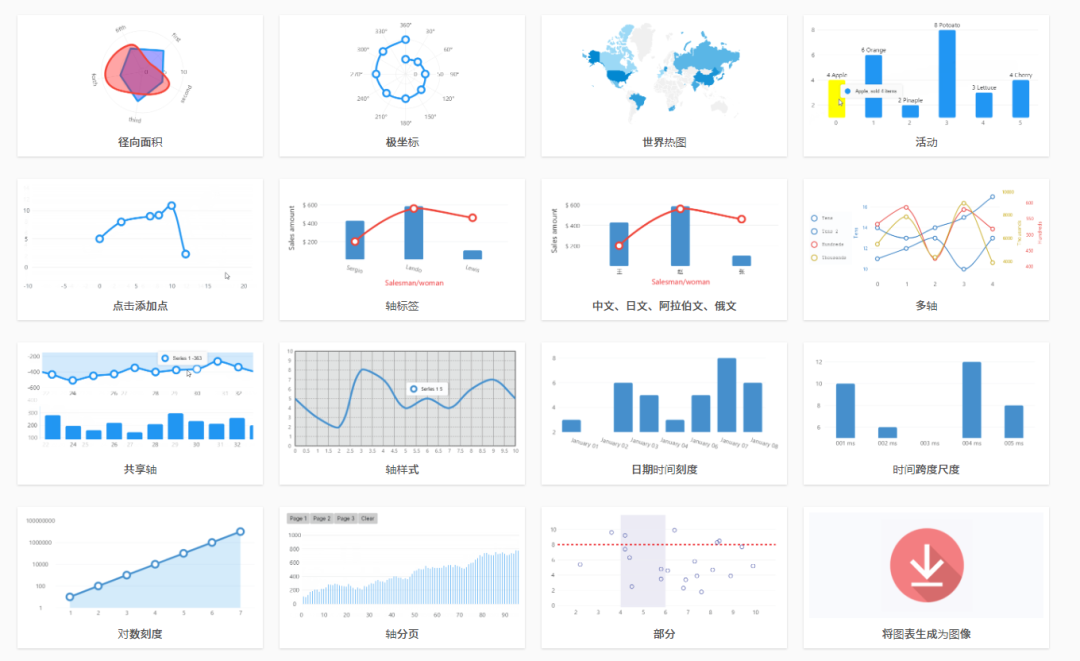

提供超過60多種圖表類型，包括：基本圖表、柱狀圖表、餅圖、散點分布、股票行情、甘特圖、儀表圖、熱點圖、坐標圖、地圖等。

圖表使用靈活、交互體驗好、數據支持自動更新可以實時動態變化。

項目結構

使用指南

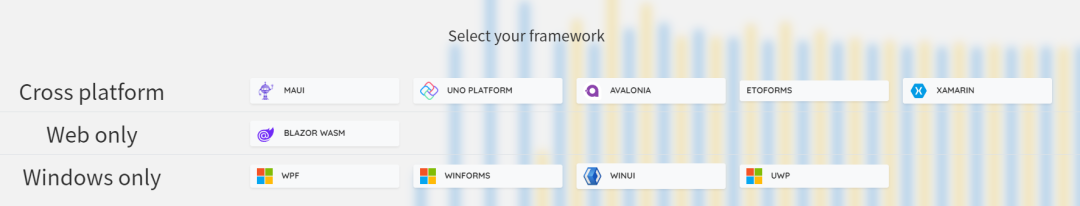

選擇平臺

安裝

1、創建項目

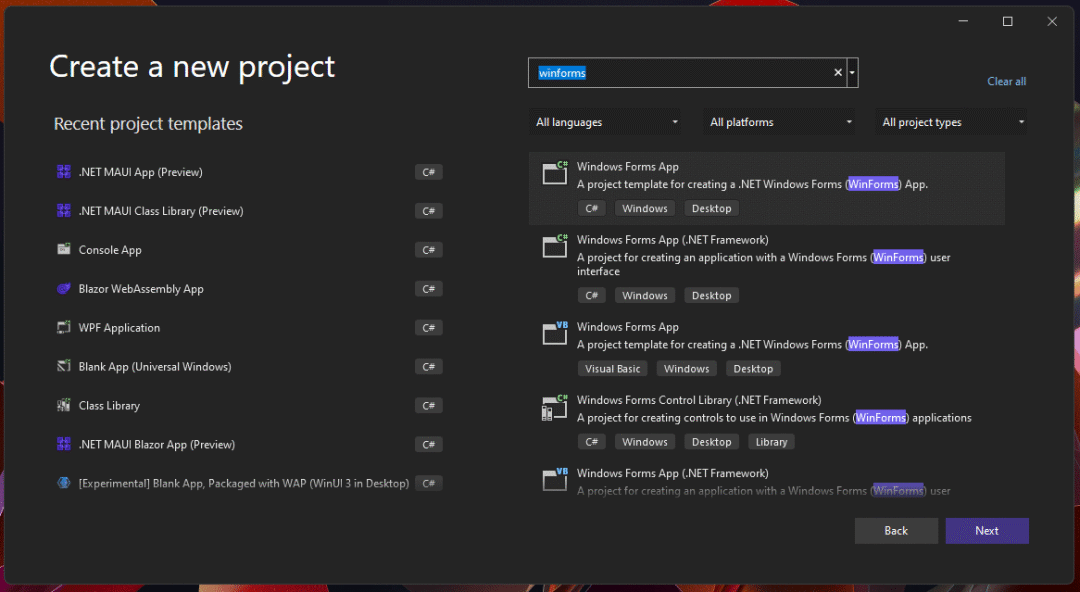

打開Visual studio創建項目，項目選擇Windows from。

2、引用插件

Install-Package LiveChartsCore.SkiaSharpView.WinForms

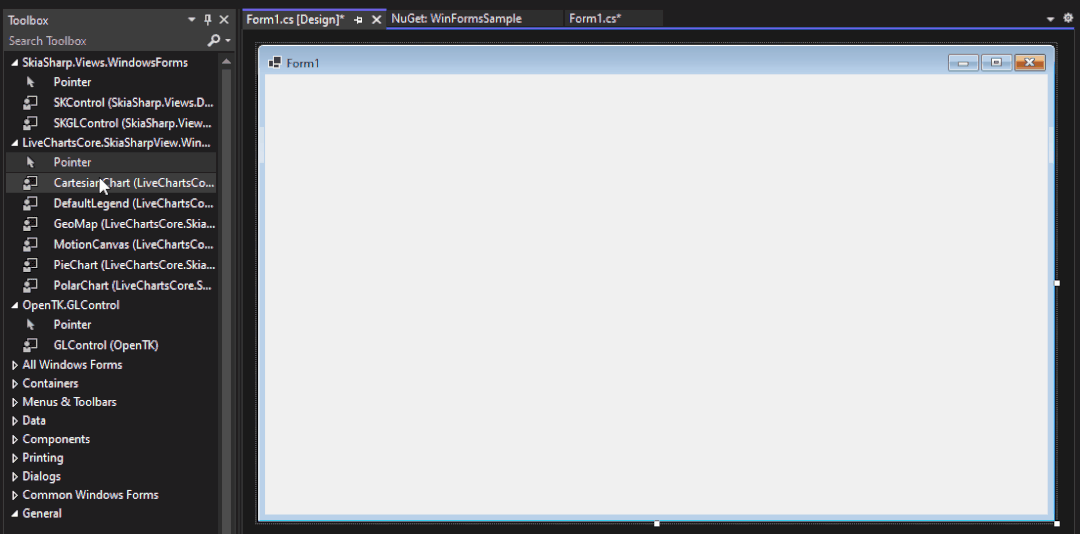

安裝插件后，在工具箱就能看到相應的圖表控件，直接拖拉便可以開發。

3、第一張圖表

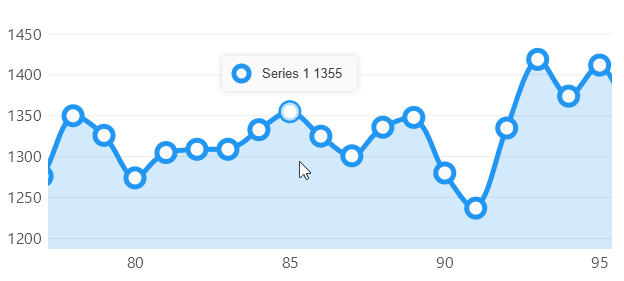

基本線圖表例子

using LiveChartsCore;
using LiveChartsCore.SkiaSharpView;
namespace WinFormsSample
{
    public partial class Form1 : Form
    {
        public Form1()
        {
            InitializeComponent();

             cartesianChart1.Series = new ISeries[]
             {
                 new LineSeries<double>
                 {
                     Values = new double[] { 2, 1, 3, 5, 3, 4, 6 },
                     Fill = null
                 }
             };
         }
    }
}

4、配置圖表主題

在項目啟動入口配置主題，設置代碼如下：

using System;
using System.Windows.Forms;
using LiveChartsCore;
using LiveChartsCore.SkiaSharpView;

 namespace WinFormsSample
{
    static class Program
    {
        [STAThread]
        static void Main()
        {
            _ = Application.SetHighDpiMode(HighDpiMode.SystemAware);
            Application.EnableVisualStyles();
            Application.SetCompatibleTextRenderingDefault(false);
            Application.Run(new Form1());
             LiveCharts.Configure(config =>
                config
                    // registers SkiaSharp as the library backend
                    // REQUIRED unless you build your own
                    .AddSkiaSharp()
                     // adds the default supported types
                    // OPTIONAL but highly recommend
                    .AddDefaultMappers()
                     // select a theme, default is Light
                    // OPTIONAL
                    //.AddDarkTheme()
                    .AddLightTheme()
                     // finally register your own mappers
                    // you can learn more about mappers at:
                    // ToDo add website link...
                    .HasMap<City>((city, point) =>
                    {
                        point.PrimaryValue = city.Population;
                        point.SecondaryValue = point.Context.Index;
                    })
                    // .HasMap<Foo>( .... )
                    // .HasMap<Bar>( .... )
                );
        }
    }
}
